Based on years of technical experience and hundreds of practical projects, Qingdao Jinwo Machinery Manufacturing Co., Ltd. has successfully supplied a customized hook type shot blasting machine solution for Shandong Donghong Pipe Industry Co., Ltd. The whole project covers 3D modeling design, high-precision processing, intelligent assembly production, and dust-free on-site installation and complete system debugging. By optimizing the equipment performance, we have improved customers' production efficiency by 30% and the production yield has exceeded 99.5%, effectively creating high-added value solutions for customers in the industrial equipment field.

This machine uses single hook shot blasting, the lifting capacity is 20 tons, the total length is 9 meters, the width is 6 meters, and the height is 6.5 meters. There is no pit. The hook sinker cleaning chamber is welded with steel plates and steel sections. It is a sealed and spacious workspace for cleaning workpieces. Two large doors open outward, which can increase the cleaning space behind the room door. The interior is composed of a protective plate made of wear-resistant manganese plate and wear-resistant rubber, a grate and wear-resistant rubber plate at the bottom, and a sealing mechanism at the top. It is a relatively sealed space, which makes it difficult for the projectile to fly out and injure people. 9 Q038 curved high-efficiency shot blasting machines are selected. The motor and shot blasting machine are driven by belts, have a compact structure, small size, strong coaxiality and stable performance. The projectile passes through the shot inlet pipe, enters the high-speed rotating shot wheel, and is ejected through the shot wheel window. The flow is concentrated in the window of the guide sleeve and ejected in a direction. It is received and accelerated by the high-speed rotating blades, and finally ejected from the end of the blades to separate and remove the glue on the surface of the workpiece. It has a small diameter, large pitch and high speed to synchronize with the elevator when lifting.

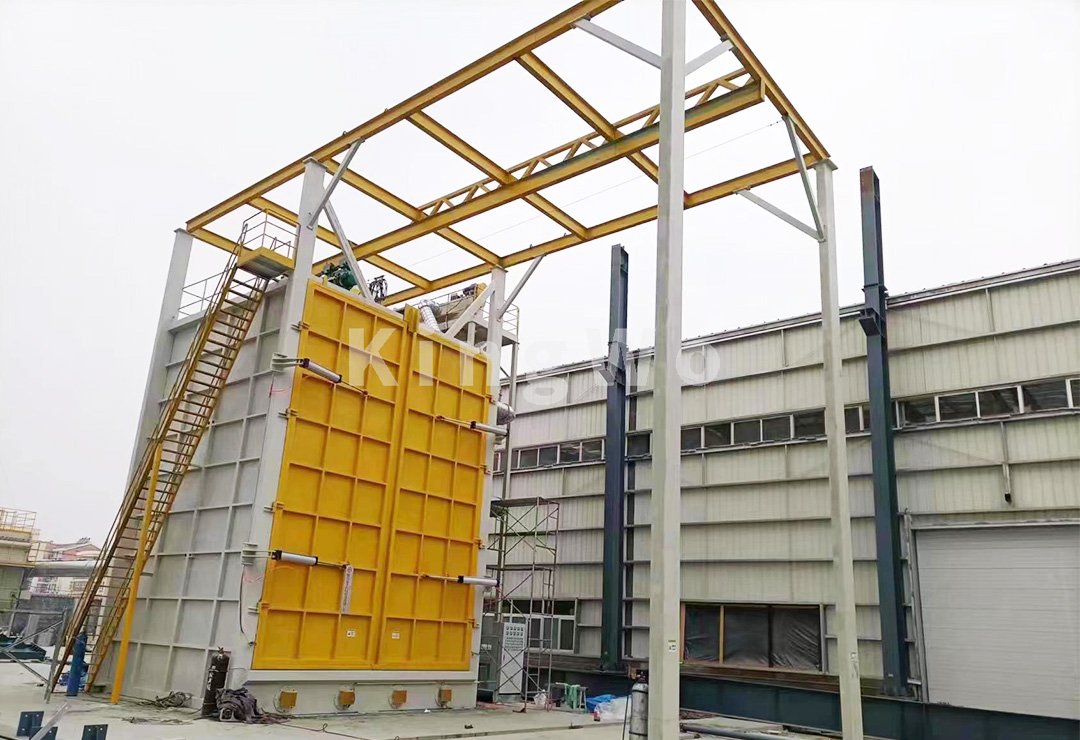

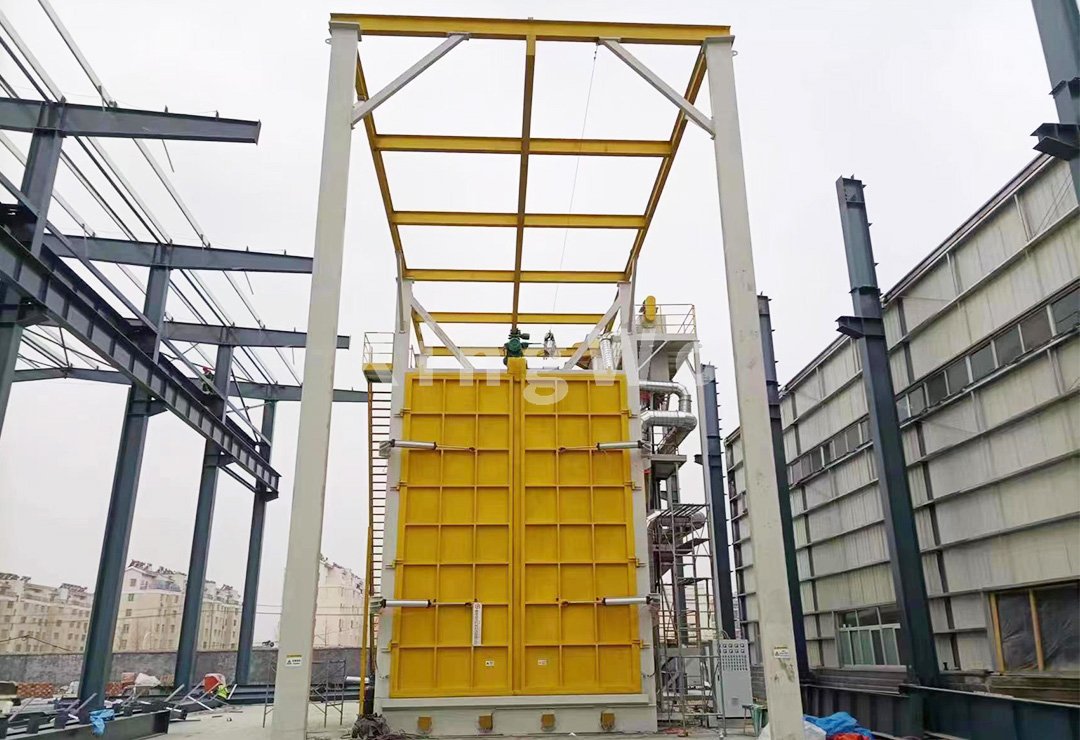

Installed three years ago

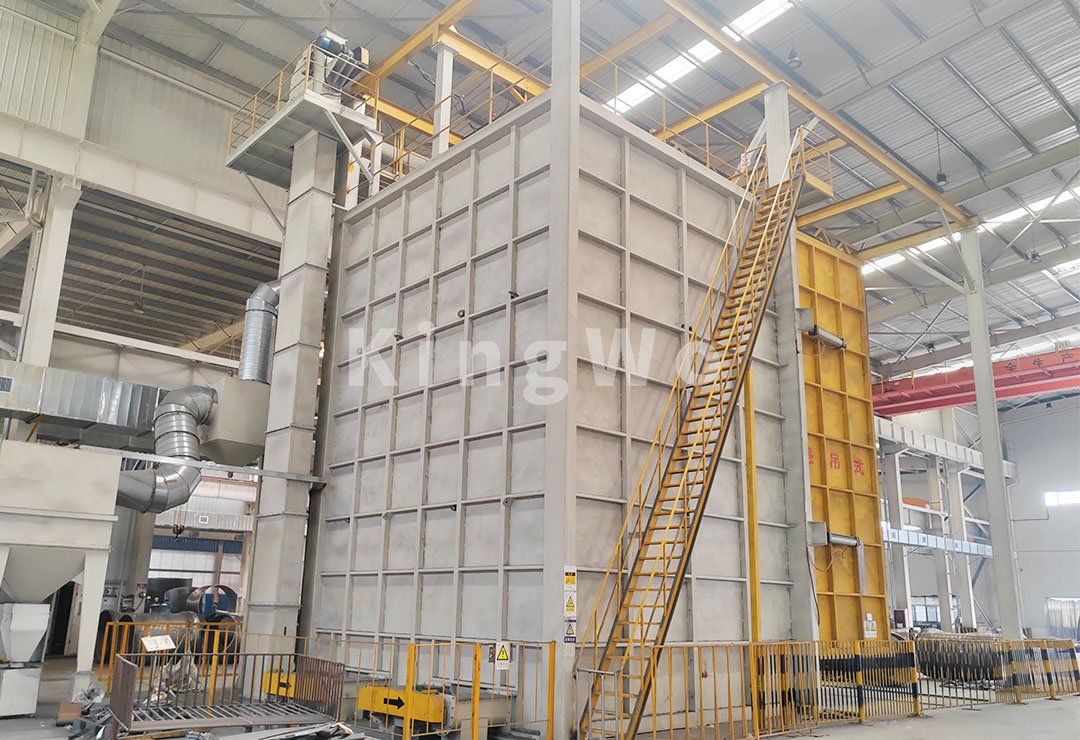

Three years after installation
