Qinhuangdao Huanya Equipment Co., Ltd. Sandblasting chamber for scraper recovery

As a professional manufacturer deeply immersed in the field of shot blasting equipment, Qingdao Jinwo Machinery Manufacturing Co., Ltd., with excellent technology and rich engineering experience, has successfully completed the full service of two sets of scraper recovery sandblasting chambers for Qinhuangdao Huanya Equipment Co., Ltd., including customized production, professional installation and precise debugging.

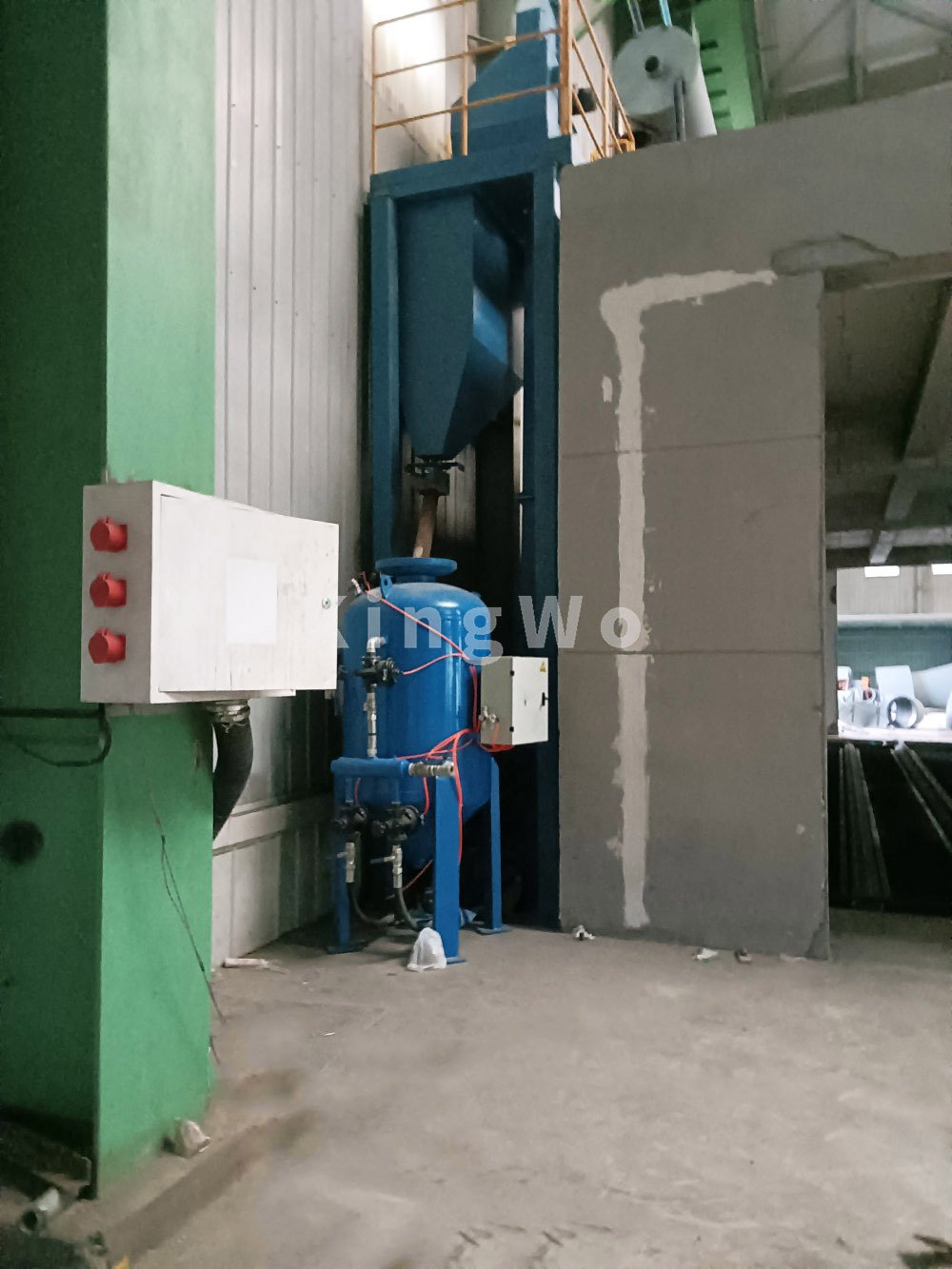

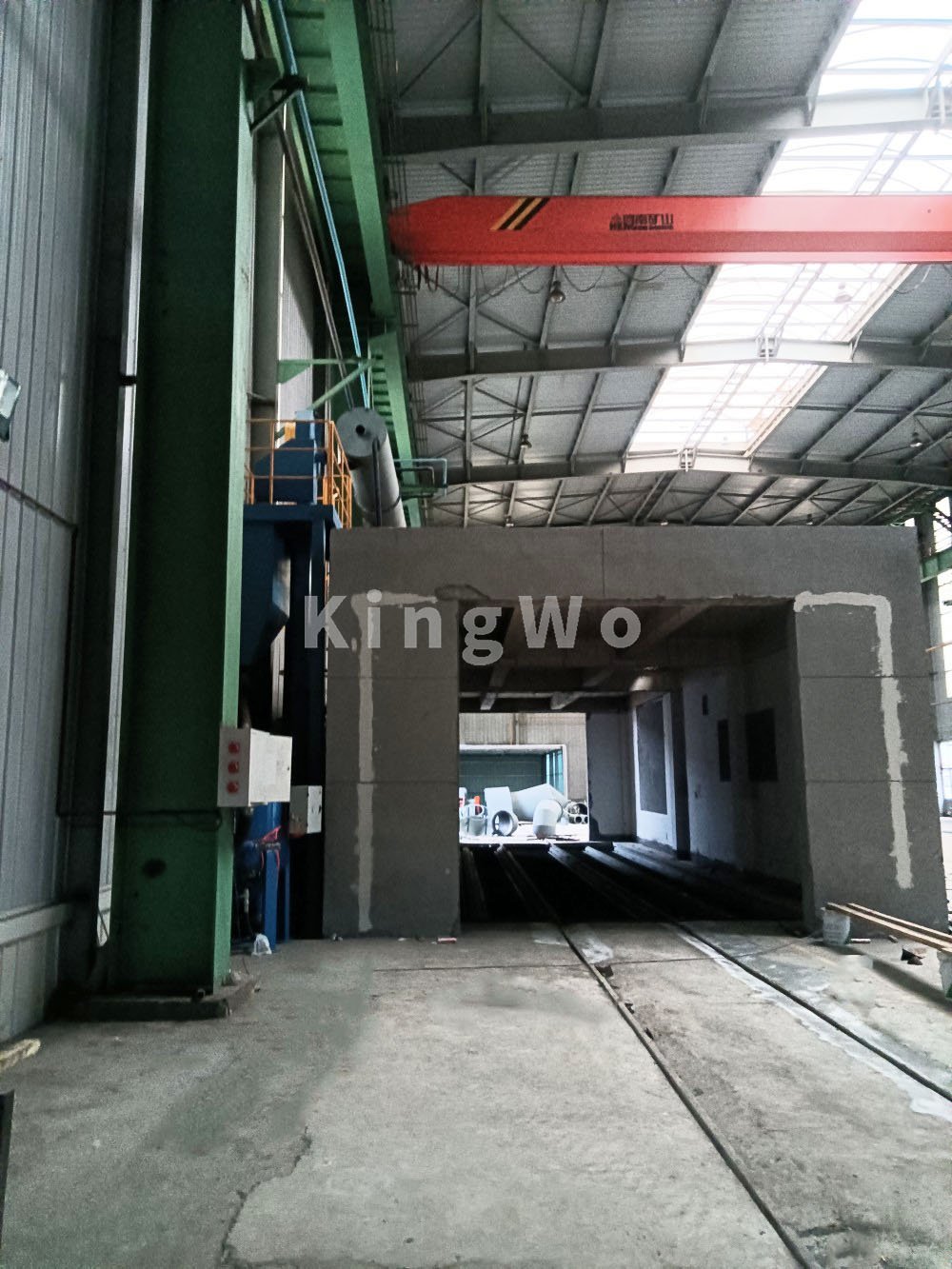

The main structure of the sandblasting chamber: The size of the two sandblasting chambers is 18 meters long, 6 meters wide and 5 meters high; The length is 16 meters, the width is 5 meters and the height is 4 meters. This specification is the ideal size for mechanical spraying. Jinwo especially values the advantages of short equipment maintenance time and long service life, and at the same time hopes to reduce energy costs and meet customer requirements.

Reliable corrosion protection: Since the equipment requires special corrosion protection, a combination of sandblasting to clean the workpiece to SA 3 or SA2.5 and coating is adopted. Several people can work in the sandblasting booth at the same time, one of whom can work on the automatic working platform. In addition, there is an automatic nozzle control system that can be raised and lowered and fixed on the three-axis working platform. Since the transportation of large parts is relatively difficult, two spray booths are provided in this plan so that spraying and drying operations can be carried out in one room. The parts are coated and dried by circulating air. The spray booth has a special structure with a new ceiling air intake section that is installed in several sizes at the same time. Each ceiling finishing section is designed as a frame structure with filters, which allows individual filter elements to be quickly replaced when necessary. A new cardboard filter system is installed on the lower first side wall of the Jinwo paint shop. The system has an exceptionally long service life of up to 9 months, which significantly reduces maintenance costs and downtime.
