Cyclone Dust Collector

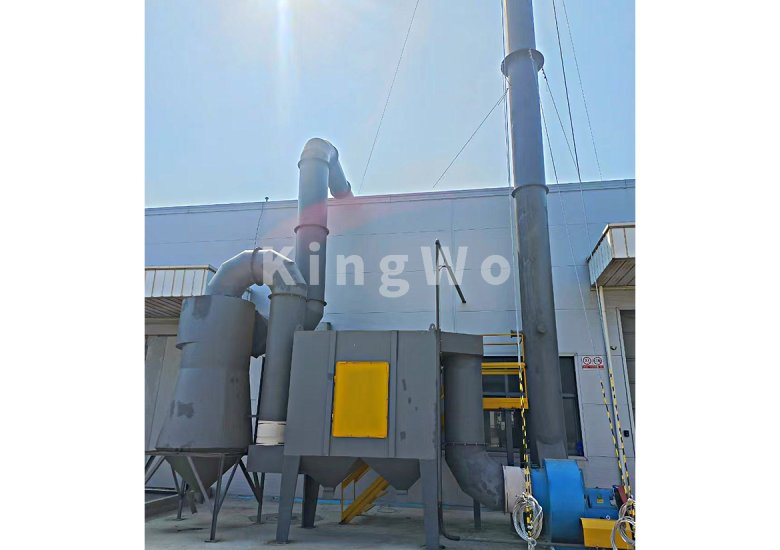

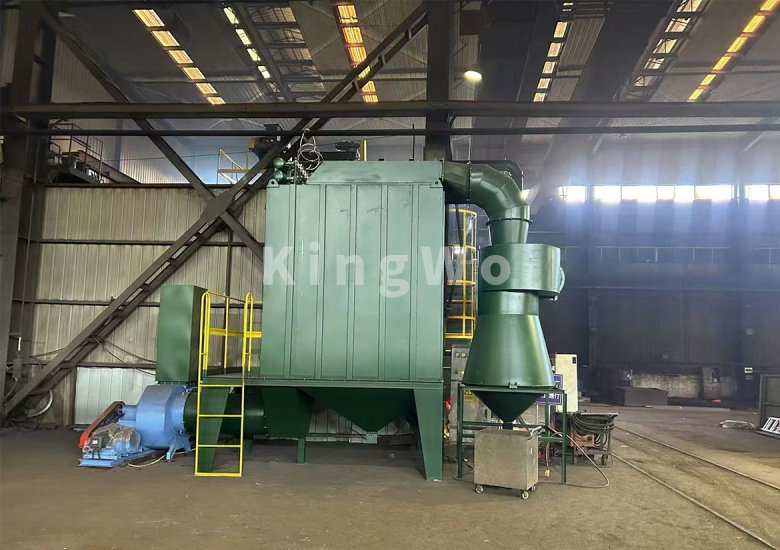

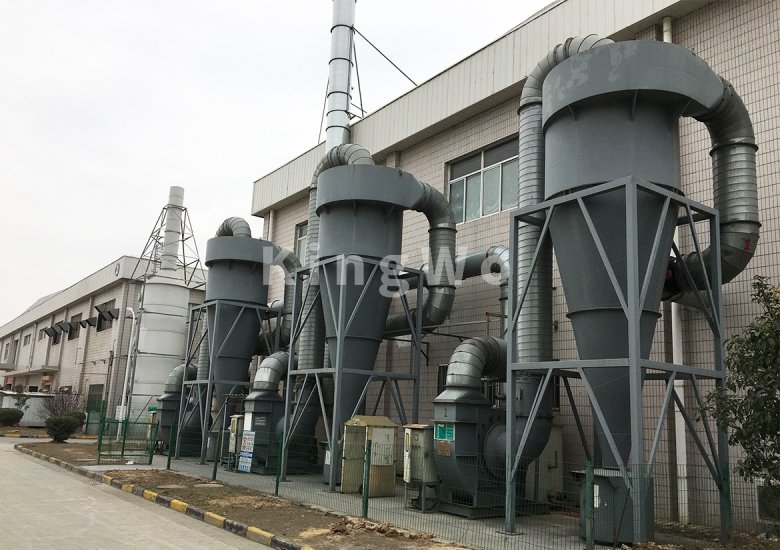

    Cyclone Dust Collector is a dry-type dust removal equipment that uses centrifugal force to separate dust from gas. Its core feature is no filter elements, relying purely on mechanical separation. Dust is separated and settled by the rotating airflow, making it widely used for high-concentration dust pre-treatment or low-precision dust removal. It can be used alone or combined with baghouse/cartridge dust collectors to form a two-stage dust removal system.

一. Core Working Principle

•     Dust-laden gas enters the cyclone body tangentially at high speed, forming a rotating flow (outer vortex) and moving downward along the wall to the cone.

• Under centrifugal force, dust is thrown to the wall, loses kinetic energy, settles vertically along the wall/cone, and falls into the bottom dust hopper.

• The cleaned gas reverses direction at the bottom of the cone, forming an upward inner vortex, flows up through the central exhaust pipe, and exits from the top air outlet.

• Dust in the hopper is discharged periodically through an ash discharge valve, completing the cycle.

二. Core Advantages

• Extremely simple structure: No wearing parts like filter bags/cartridges, low failure rate, low manufacturing and maintenance cost.

• Strong durability: Handles high-temperature, high-humidity, and corrosive dust-laden gas, suitable for harsh industrial conditions.

• Large air volume capacity: Single unit supports high airflow with a small footprint and no complex assembly.

• Easy operation: Fully mechanical structure, no reliance on electrical control, no preheating needed, simple to start and stop.

三. Application Scenarios

• Industries: Metallurgy, chemical, building materials, power, grain processing, sandblasting/shot blasting machine supporting systems, etc.

• Working Conditions:

• Pre-treatment for high-concentration dust (reduces dust load for subsequent baghouse/cartridge filters)

• Direct capture of coarse particles

• Primary dust removal for high-temperature / high-humidity gas

• Dust Points: Raw material crushing, material transfer, powder conveying, boiler flue gas primary treatment, etc.
