​Side Insert Type Dust Collector

    Side-Insert Baghouse Dust Collector features a unique structure and excellent performance. It can treat dust on‑site, eliminating the trouble of air network design, duct fabrication, and installation. Its main advantages include a small footprint, low height, light weight, convenient indoor layout, high dust removal efficiency, and easy side‑insert bag replacement. Filter bags can be replaced outside the machine without being limited by the indoor space height. It is widely used at individual dust‑generating points such as transfer points of mechanized bulk material conveying, discharge points of pneumatic conveying systems, grain silos, etc., and can capture dust effectively and in a timely.

    Side-Insert Baghouse Dust Collector is a high‑efficiency dust collector where filter bags or cartridges are inserted from the side of the cabinet. Its core advantages are side bag replacement, suitability for low‑height spaces, compact structure, and modular assembly. It is ideal for high‑dust industrial scenarios such as sandblasting machines and shot blasting machines.

一. Core Structure

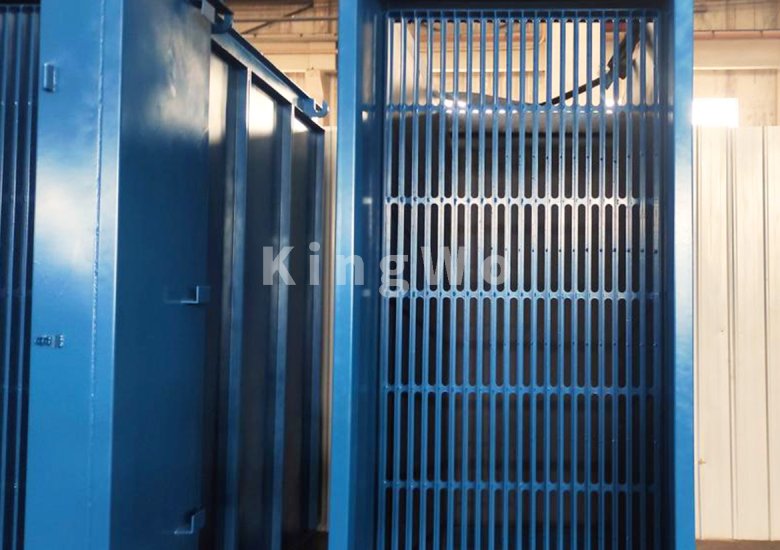

    It uses flat bags (mainstream) or filter cartridges as filter elements, which are inserted and fixed into the tube sheet from the side, mostly in external filtration mode. It consists of a cabinet, filter bags/cartridges, a cleaning system (pulse‑jet / reverse air / mechanical vibration), a dust hopper, and a side‑insert sealed access door.

二. Working Principle

• Dust‑laden gas enters the cabinet; dust is trapped on the outer surface of filter bags/cartridges, and clean air passes through the filter elements and is discharged.

• As the dust layer thickens, the cleaning system activates (pulse‑jet, reverse air, or mechanical vibration) to remove dust from the surface.

• Dust falls into the dust hopper for periodic discharge.

• Filter elements are replaced through the side sealed door, with all operations performed outside the machine.

三. Core Advantages

• Installation adaptability: No need for overhead space; suitable for indoor and low‑rise workshops; modular design allows split delivery and on‑site assembly.

• Easy maintenance: Side bag replacement outside the machine, no need to enter the dust area, reducing operation risk and labor time.

• Efficiency & cost: Flat bag design increases filtration area by about 30%–50% compared with round bags in the same volume, with a smaller footprint. Pulse‑jet type can achieve emission concentration < 1 mg/m³.
