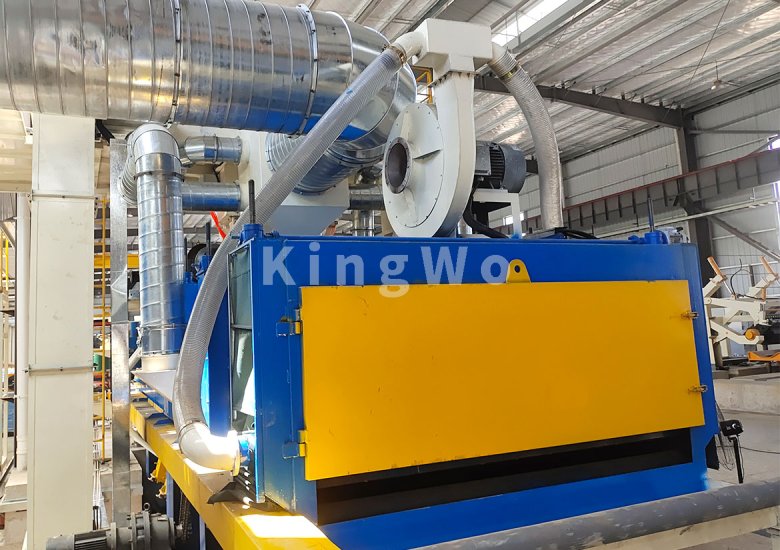

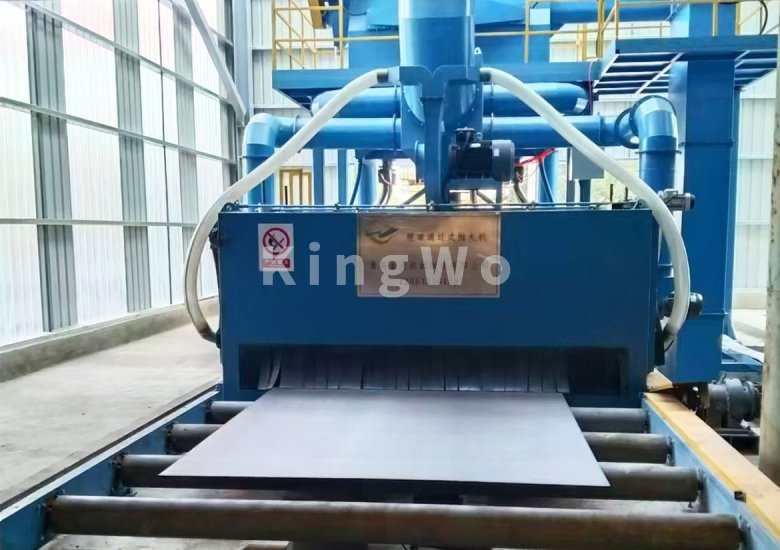

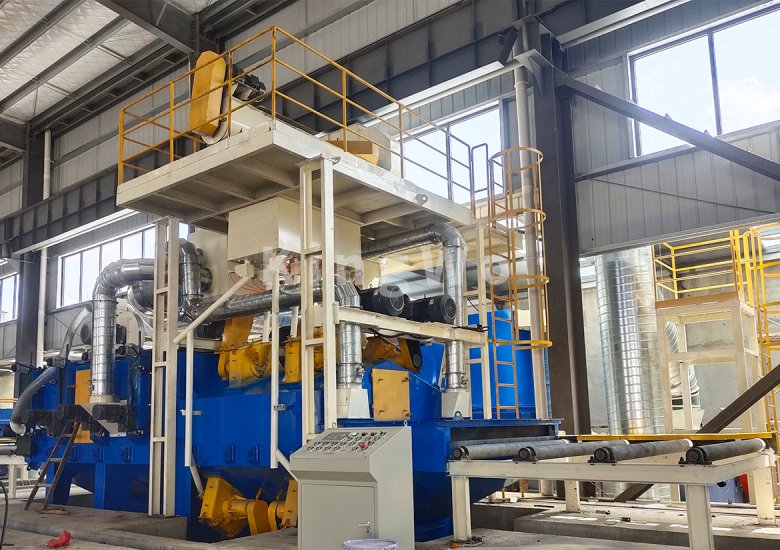

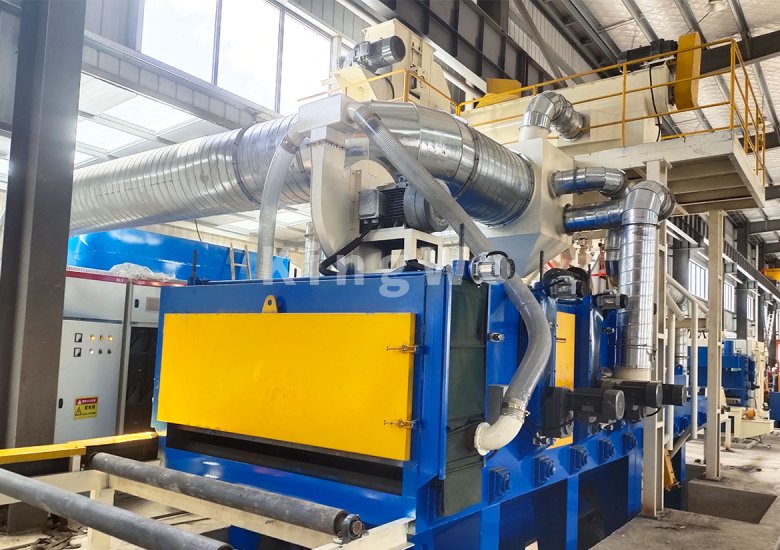

Steel Plate Shot Blasting Machine is a special piece of equipment for multi-functional surface pretreatment of welded structures, H-beams, section steels, steel grids, and steel plates. It is widely used in steel structures, plate processing, shipbuilding, engineering machinery, automotive, wind power, bridge, and other industries, mainly for pre-coating surface treatment. Some models can also perform plate surface strengthening.
Applications
Steel Structure Industry: Rust and oxide scale removal for workshop steel structures, steel box girders, steel columns, roof trusses, and other structural plates to improve coating adhesion for subsequent painting.
Plate Processing Industry: Surface cleaning for hot-rolled steel plates, cold-rolled steel plates, stainless steel plates, and aluminum plates, removing oxide scale and oil stains from rolling to improve surface finish.
Shipbuilding Industry: Rust removal pretreatment for ship decks, hull plates, and cabin plates to meet high anti-corrosion requirements in marine environments.
Engineering Machinery Industry: Surface cleaning for frames and hood plates of excavators, loaders, cranes, and other equipment for subsequent coating.
Wind Power & Bridge Industry: Cleaning of thick steel plates for wind tower segments and bridge steel box girders, with surface quality meeting high-grade coating standards.
Automotive Industry: Surface cleaning for thin steel plates of automotive body parts and frame plates, removing oil stains and burrs from stamping.
Core Treatment Effects
Cleaning Effect: Thoroughly removes oxide scale, rust, oil, welding slag, and burrs. The surface shows a uniform metallic color without residues or blind spots.
Pretreatment Effect: Creates a uniform rough surface with roughness Ra 1.6–6.3 μm (adjustable via conveyor speed and abrasive size). Coating adhesion is improved by more than 30%, and service life is extended by 2–3 times.
Operation Effect: Continuous operation with no manual error, ensuring high consistency for the same batch. Processing speed is adjustable for different contamination levels.
Environmental Effect: Fully sealed structure with high-efficiency dust removal. Dust emission concentration ≤ 30 mg/m³, compliant with national standard GB 16297-1996. No abrasive splashing, ensuring a friendly workshop environment.
Non-standard customization is available.
Type | Q69(customizable) |
The effective cleaning width(mm) | 800-4000 |
The room feed-in size(mm) | 1000*400---4200*400 |
The length of the cleaning workpiece(mm) | 1200-12000 |
The speed of the wheel conveyor (m/min) | 0.5-4 |
The section steel specification(mm) | 800*300---4000*300 |
The quantity of shot blasting(kg/min) | 4*180---8*360 |
The first enclosed quantity(kg) | 4000---11000 |
Roll brush adjusting height(mm) | 200---900 |
Airness capacity(m³/h) | 22000---38000 |
Exterior size(mm) | 25014*4500*9015 |
Total power(except for dust cleaning)(kw) | 90---293.6 |
